Gradient Visualization for Radial 1D Stellar Wind Simulation

Imports

# ==== GPU selection ====
from autocvd import autocvd
autocvd(num_gpus = 1)
# =======================

# numerics
import jax
import jax.numpy as jnp
# # for now using CPU as of outdated NVIDIA Driver
# jax.config.update('jax_platform_name', 'cpu')
# # jax.config.update('jax_disable_jit', True)
# # 64-bit precision
jax.config.update("jax_enable_x64", True)

# debug nans
# jax.config.update("jax_debug_nans", True)

# timing
from timeit import default_timer as timer

# plotting
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec

# fluids
from astronomix import WindParams
from astronomix import SimulationConfig
from astronomix import get_helper_data
from astronomix import SimulationParams
from astronomix import time_integration
from astronomix import construct_primitive_state


from astronomix import get_registered_variables
from astronomix.option_classes import WindConfig


# units
from astronomix import CodeUnits
from astropy import units as u
import astropy.constants as c
from astropy.constants import m_p

# wind-specific
from astronomix._physics_modules._stellar_wind.weaver import Weaver

Initiating the stellar wind simulation

from astronomix.option_classes.simulation_config import OPEN_BOUNDARY, REFLECTIVE_BOUNDARY, SPHERICAL


print("👷 Setting up simulation...")

# simulation settings
gamma = 5/3

# spatial domain
geometry = SPHERICAL
box_size = 1.0
num_cells = 401

left_boundary = REFLECTIVE_BOUNDARY
right_boundary = OPEN_BOUNDARY

# activate stellar wind
stellar_wind = True

fixed_timestep = True
num_timesteps = 10000

# setup simulation config
config = SimulationConfig(
    runtime_debugging = True,
    geometry = geometry,
    box_size = box_size,
    num_cells = num_cells,
    wind_config = WindConfig(
        stellar_wind = stellar_wind,
        num_injection_cells = 10,
        trace_wind_density = False,
    ),
    # fixed_timestep = fixed_timestep,
    # num_timesteps = num_timesteps,
    # first_order_fallback = True,
)

helper_data = get_helper_data(config)

registered_variables = get_registered_variables(config)

👷 Setting up simulation...

from astronomix.option_classes.simulation_config import HLL


config_high_res = SimulationConfig(
    riemann_solver = HLL,
    geometry = geometry,
    box_size = box_size,
    num_cells = 2001,
    wind_config = WindConfig(
        stellar_wind = stellar_wind,
        num_injection_cells = 10,
    ),
    # fixed_timestep = fixed_timestep,
    # num_timesteps = num_timesteps,
    # first_order_fallback = True,
)

helper_data_high_res = get_helper_data(config_high_res)

Setting the simulation parameters and initial state

# code units
from astronomix.option_classes.simulation_config import finalize_config


code_length = 3 * u.parsec
code_mass = 1e-3 * u.M_sun
code_velocity = 1 * u.km / u.s
code_units = CodeUnits(code_length, code_mass, code_velocity)

# time domain
C_CFL = 0.8
t_final = 2.5 * 1e4 * u.yr
t_end = t_final.to(code_units.code_time).value
dt_max = 0.1 * t_end

# wind parameters
M_star = 40 * u.M_sun
wind_final_velocity = 2000 * u.km / u.s
wind_mass_loss_rate = 2.965e-3 / (1e6 * u.yr) * M_star

wind_params = WindParams(
    wind_mass_loss_rate = wind_mass_loss_rate.to(code_units.code_mass / code_units.code_time).value,
    wind_final_velocity = wind_final_velocity.to(code_units.code_velocity).value
)

params = SimulationParams(
    C_cfl = C_CFL,
    dt_max = dt_max,
    gamma = gamma,
    t_end = t_end,
    wind_params=wind_params
)

params_high_res = SimulationParams(
    C_cfl = C_CFL,
    dt_max = dt_max,
    gamma = gamma,
    t_end = t_end,
    wind_params=wind_params
)

# homogeneous initial state
rho_0 = 2 * c.m_p / u.cm**3
p_0 = 3e4 * u.K / u.cm**3 * c.k_B

rho_init = jnp.ones(num_cells) * rho_0.to(code_units.code_density).value
u_init = jnp.zeros(num_cells)
p_init = jnp.ones(num_cells) * p_0.to(code_units.code_pressure).value

# get initial state
initial_state = construct_primitive_state(
    config = config,
    registered_variables = registered_variables,
    density = rho_init,
    velocity_x = u_init,
    gas_pressure = p_init
)

config = finalize_config(config, initial_state.shape)

# initial state high res
rho_init_high_res = jnp.ones(config_high_res.num_cells) * rho_0.to(code_units.code_density).value
u_init_high_res = jnp.zeros(config_high_res.num_cells)
p_init_high_res = jnp.ones(config_high_res.num_cells) * p_0.to(code_units.code_pressure).value

initial_state_high_res = construct_primitive_state(
    config = config_high_res,
    registered_variables = registered_variables,
    density = rho_init_high_res,
    velocity_x = u_init_high_res,
    gas_pressure = p_init_high_res
)

config_high_res = finalize_config(config_high_res, initial_state_high_res.shape)

For spherical geometry, only HLL is currently supported. Also, only the unsplit mode has been tested.
Setting unsplit mode for spherical geometry
Setting MUSCL time integrator for spherical geometry
Automatically setting reflective left and open right boundary for spherical geometry.
For stellar wind simulations, we need source term aware timesteps, turning on.
For spherical geometry, only HLL is currently supported. Also, only the unsplit mode has been tested.
Setting unsplit mode for spherical geometry
Setting MUSCL time integrator for spherical geometry
Automatically setting reflective left and open right boundary for spherical geometry.
For stellar wind simulations, we need source term aware timesteps, turning on.

Simulation and Gradient

final_state = time_integration(initial_state, config, params, registered_variables)

# high res final state
final_state_high_res = time_integration(initial_state_high_res, config_high_res, params_high_res, registered_variables)

def integrator(velocity):
    return time_integration(initial_state, config, SimulationParams(C_cfl=params.C_cfl, dt_max=params.dt_max, gamma=params.gamma, t_end=params.t_end, wind_params=WindParams(wind_mass_loss_rate=params.wind_params.wind_mass_loss_rate, wind_final_velocity=velocity)), registered_variables)

vel_sens = jax.jacfwd(integrator)(params.wind_params.wind_final_velocity)

# calculate the finite difference derivative
dv = 0.1
# print dv in km/s
print(f"dv = {(dv * code_units.code_velocity).to(u.km/u.s)}")
vel_sens_fd = (integrator(params.wind_params.wind_final_velocity + dv) - integrator(params.wind_params.wind_final_velocity - dv)) / (2 * dv)

dv = 0.1 km / s

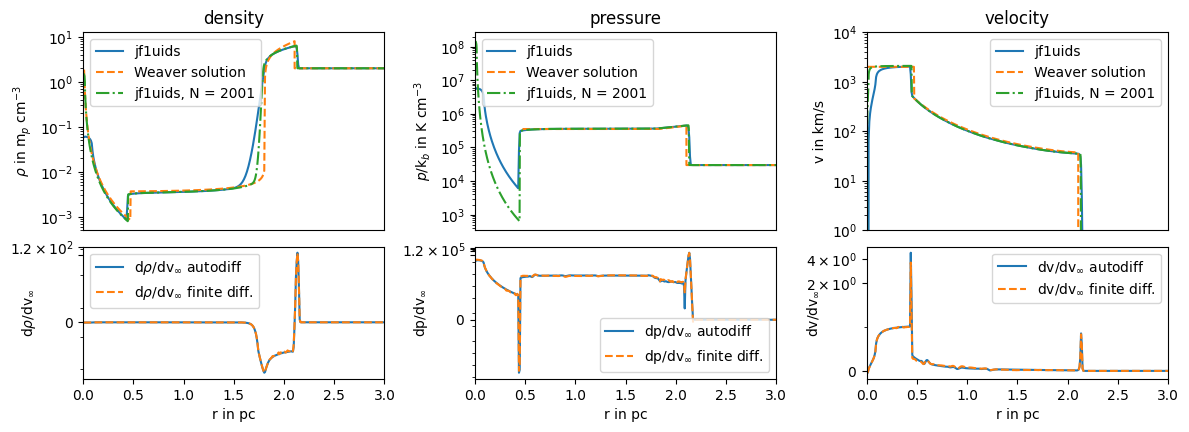

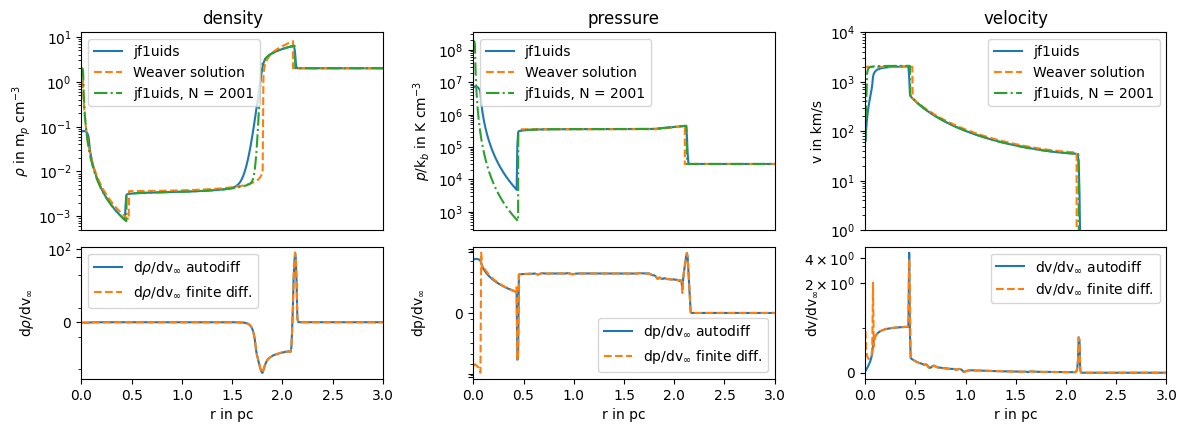

Visualization

def plot_weaver_comparison(axs, final_state, params, helper_data, code_units, rho_0, p_0):
    print("👷 generating plots")

    rho = final_state[registered_variables.density_index]
    vel = final_state[registered_variables.velocity_index]
    p = final_state[registered_variables.pressure_index]

    rho = rho * code_units.code_density
    vel = vel * code_units.code_velocity
    p = p * code_units.code_pressure

    r_high_res = helper_data_high_res.geometric_centers * code_units.code_length

    rho_high_res = final_state_high_res[registered_variables.density_index]
    vel_high_res = final_state_high_res[registered_variables.velocity_index]
    p_high_res = final_state_high_res[registered_variables.pressure_index]

    rho_high_res = rho_high_res * code_units.code_density
    vel_high_res = vel_high_res * code_units.code_velocity
    p_high_res = p_high_res * code_units.code_pressure

    r = helper_data.geometric_centers * code_units.code_length

    # get weaver solution
    weaver = Weaver(
        params.wind_params.wind_final_velocity * code_units.code_velocity,
        params.wind_params.wind_mass_loss_rate * code_units.code_mass / code_units.code_time,
        rho_0,
        p_0
    )
    current_time = params.t_end * code_units.code_time# + 12e-4 * code_units.code_time
    print(current_time)

    # density
    r_density_weaver, density_weaver = weaver.get_density_profile(0.01 * u.parsec, 3.5 * u.parsec, current_time)
    r_density_weaver = r_density_weaver.to(u.parsec)
    density_weaver = (density_weaver / m_p).to(u.cm**-3)

    # velocity
    r_velocity_weaver, velocity_weaver = weaver.get_velocity_profile(0.01 * u.parsec, 3.5 * u.parsec, current_time)
    r_velocity_weaver = r_velocity_weaver.to(u.parsec)
    velocity_weaver = velocity_weaver.to(u.km / u.s)

    # pressure
    r_pressure_weaver, pressure_weaver = weaver.get_pressure_profile(0.01 * u.parsec, 3.5 * u.parsec, current_time)
    r_pressure_weaver = r_pressure_weaver.to(u.parsec)
    pressure_weaver = (pressure_weaver / c.k_B).to(u.cm**-3 * u.K)

    axs[0].set_yscale("log")
    axs[0].plot(r.to(u.parsec), (rho / m_p).to(u.cm**-3), label="astronomix")

    axs[0].plot(r_density_weaver, density_weaver, "--", label="Weaver solution")

    axs[0].plot(r_high_res.to(u.parsec), (rho_high_res / m_p).to(u.cm**-3), "-.", label="astronomix, N = {}".format(config_high_res.num_cells))

    axs[0].set_title("density")
    axs[0].set_ylabel(r"$\rho$ in m$_p$ cm$^{-3}$")
    axs[0].set_xlim(0, 3)

    axs[0].legend(loc="upper left")

    # turn off x ticks
    axs[0].set_xticks([])
    axs[1].set_xticks([])
    axs[2].set_xticks([])

    axs[1].set_yscale("log")
    axs[1].plot(r.to(u.parsec), (p / c.k_B).to(u.K / u.cm**3), label="astronomix")
    axs[1].plot(r_pressure_weaver, pressure_weaver, "--", label="Weaver solution")
    axs[1].plot(r_high_res.to(u.parsec), (p_high_res / c.k_B).to(u.K / u.cm**3), "-.", label="astronomix, N = {}".format(config_high_res.num_cells))

    axs[1].set_title("pressure")
    axs[1].set_ylabel(r"$p$/k$_b$ in K cm$^{-3}$")
    axs[1].set_xlim(0, 3)

    axs[1].legend(loc="upper left")


    axs[2].set_yscale("log")
    axs[2].plot(r.to(u.parsec), vel.to(u.km / u.s), label="astronomix")
    axs[2].plot(r_velocity_weaver, velocity_weaver, "--", label="Weaver solution")
    axs[2].plot(r_high_res.to(u.parsec), vel_high_res.to(u.km / u.s), "-.", label="astronomix, N = {}".format(config_high_res.num_cells))
    axs[2].set_title("velocity")
    # ylim 1 to 1e4 km/s
    axs[2].set_ylim(1, 1e4)
    axs[2].set_xlim(0, 3)
    axs[2].set_ylabel("v in km/s")
    # xlabel
    # show legend upper left
    axs[2].legend(loc="upper right")

def sensitivity_plot(axs, vel_sens, vel_sens_fd):

    rho_sens_vel = vel_sens[registered_variables.density_index]
    vel_sens_vel = vel_sens[registered_variables.velocity_index]
    p_sens_vel = vel_sens[registered_variables.pressure_index]

    rho_sens_vel_fd = vel_sens_fd[registered_variables.density_index]
    vel_sens_vel_fd = vel_sens_fd[registered_variables.velocity_index]
    p_sens_vel_fd = vel_sens_fd[registered_variables.pressure_index]

    r = helper_data.geometric_centers * code_units.code_length

    axs[0].plot(r.to(u.parsec), rho_sens_vel, label=r"d$\rho$/dv$_\infty$ autodiff")
    axs[0].plot(r.to(u.parsec), rho_sens_vel_fd, "--", label=r"d$\rho$/dv$_\infty$ finite diff.")
    axs[0].set_ylabel(r"d$\rho$/dv$_\infty$")
    axs[0].legend(loc = "upper left")
    axs[0].tick_params(axis='y')
    axs[0].set_yscale('symlog')
    axs[0].set_xlim(0, 3)
    axs[0].set_xlabel("r in pc")
    axs[0].yaxis.set_label_coords(-0.15, 0.5)

    axs[1].plot(r.to(u.parsec), p_sens_vel, label=r"dp/dv$_\infty$ autodiff")
    axs[1].plot(r.to(u.parsec), p_sens_vel_fd, "--", label=r"dp/dv$_\infty$ finite diff.")
    axs[1].set_ylabel(r"dp/dv$_\infty$")
    axs[1].legend(loc = "lower right")
    axs[1].tick_params(axis='y')
    axs[1].set_yscale('symlog')
    axs[1].set_xlim(0, 3)
    axs[1].set_xlabel("r in pc")
    axs[1].yaxis.set_label_coords(-0.15, 0.5)

    axs[2].plot(r.to(u.parsec), vel_sens_vel, label=r"dv/dv$_\infty$ autodiff")
    axs[2].plot(r.to(u.parsec), vel_sens_vel_fd, "--", label=r"dv/dv$_\infty$ finite diff.")
    axs[2].set_ylabel(r"dv/dv$_\infty$")
    axs[2].legend(loc = "upper right")
    axs[2].tick_params(axis='y')
    axs[2].set_yscale('symlog')
    axs[2].set_xlim(0, 3)
    axs[2].set_xlabel("r in pc")
    axs[2].yaxis.set_label_coords(-0.15, 0.5)

    axs[0].yaxis.set_major_locator(plt.MaxNLocator(3))
    axs[1].yaxis.set_major_locator(plt.MaxNLocator(6))
    axs[2].yaxis.set_major_locator(plt.MaxNLocator(3))


fig = plt.figure(figsize=(14, 4.5))

gs = GridSpec(2, 3, height_ratios=[3, 2], figure=fig, hspace=0.1, wspace=0.3)

axs_upper = [fig.add_subplot(gs[0, i]) for i in range(3)]
axs_lower = [fig.add_subplot(gs[1, i]) for i in range(3)]

plot_weaver_comparison(axs_upper, final_state, params, helper_data, code_units, rho_0, p_0)
sensitivity_plot(axs_lower, vel_sens, vel_sens_fd)

plt.tight_layout()

# TODO: add finite difference here

plt.savefig("../figures/gradients_through_stellar_wind.pdf", bbox_inches="tight")

👷 generating plots
0.00852260137538079 code_length / code_velocity

/tmp/ipykernel_2542770/3031789449.py:149: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()
